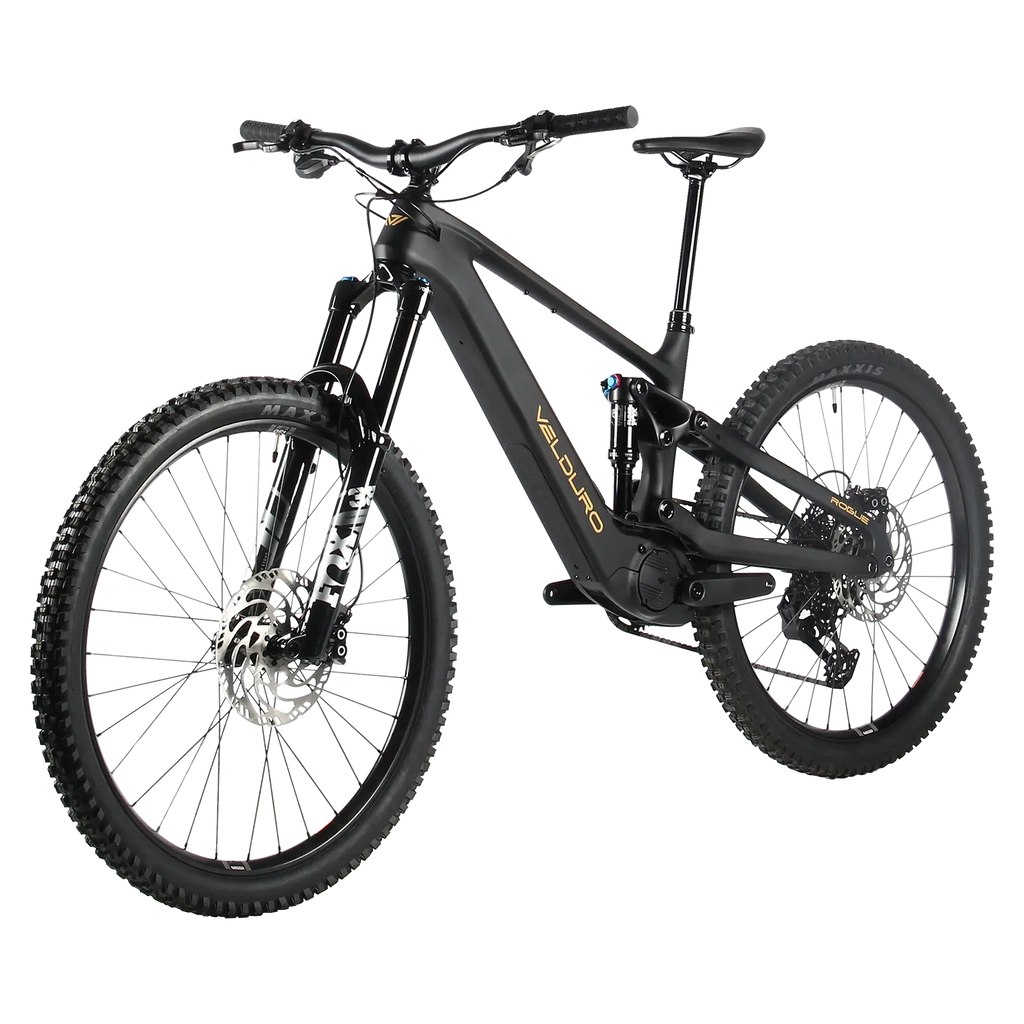

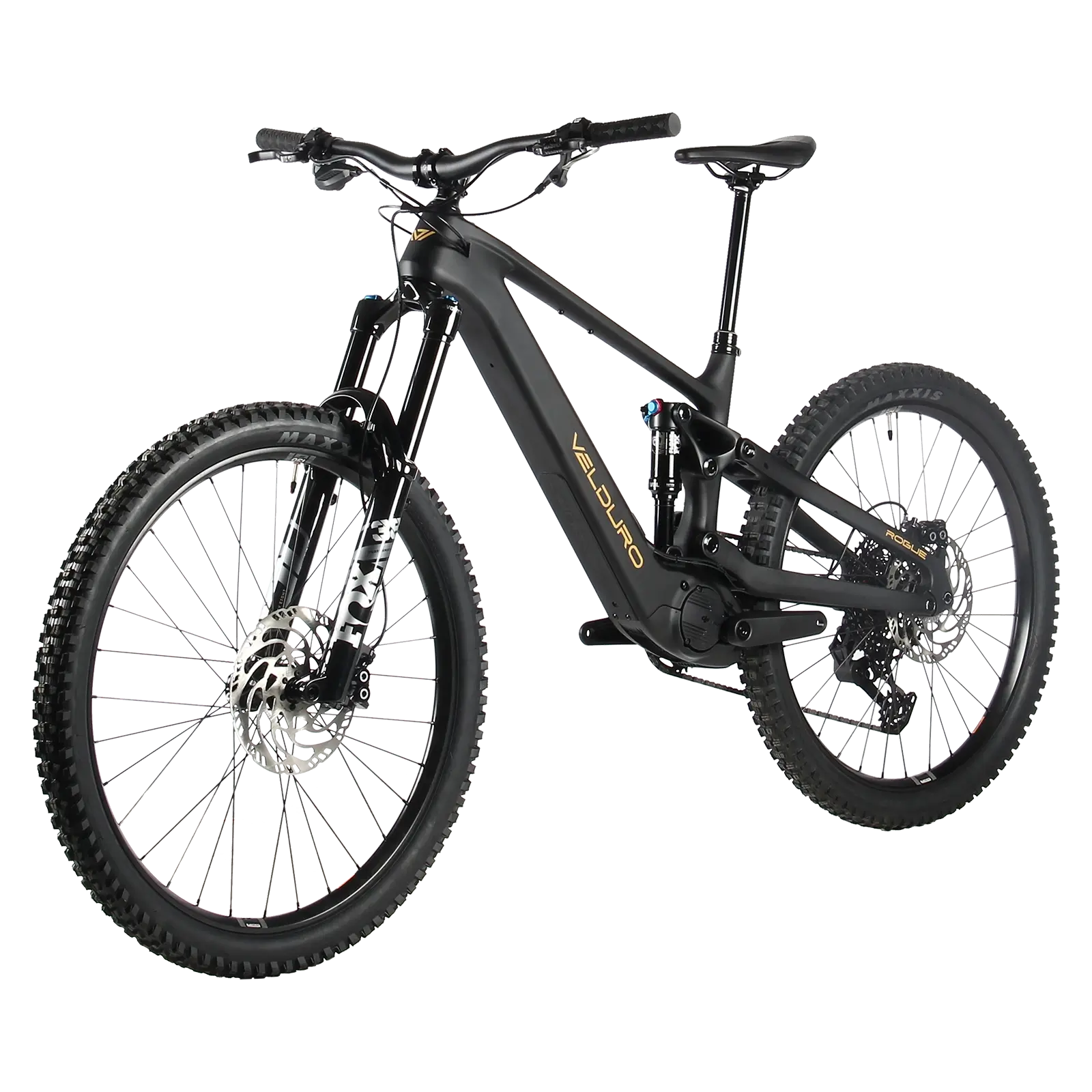

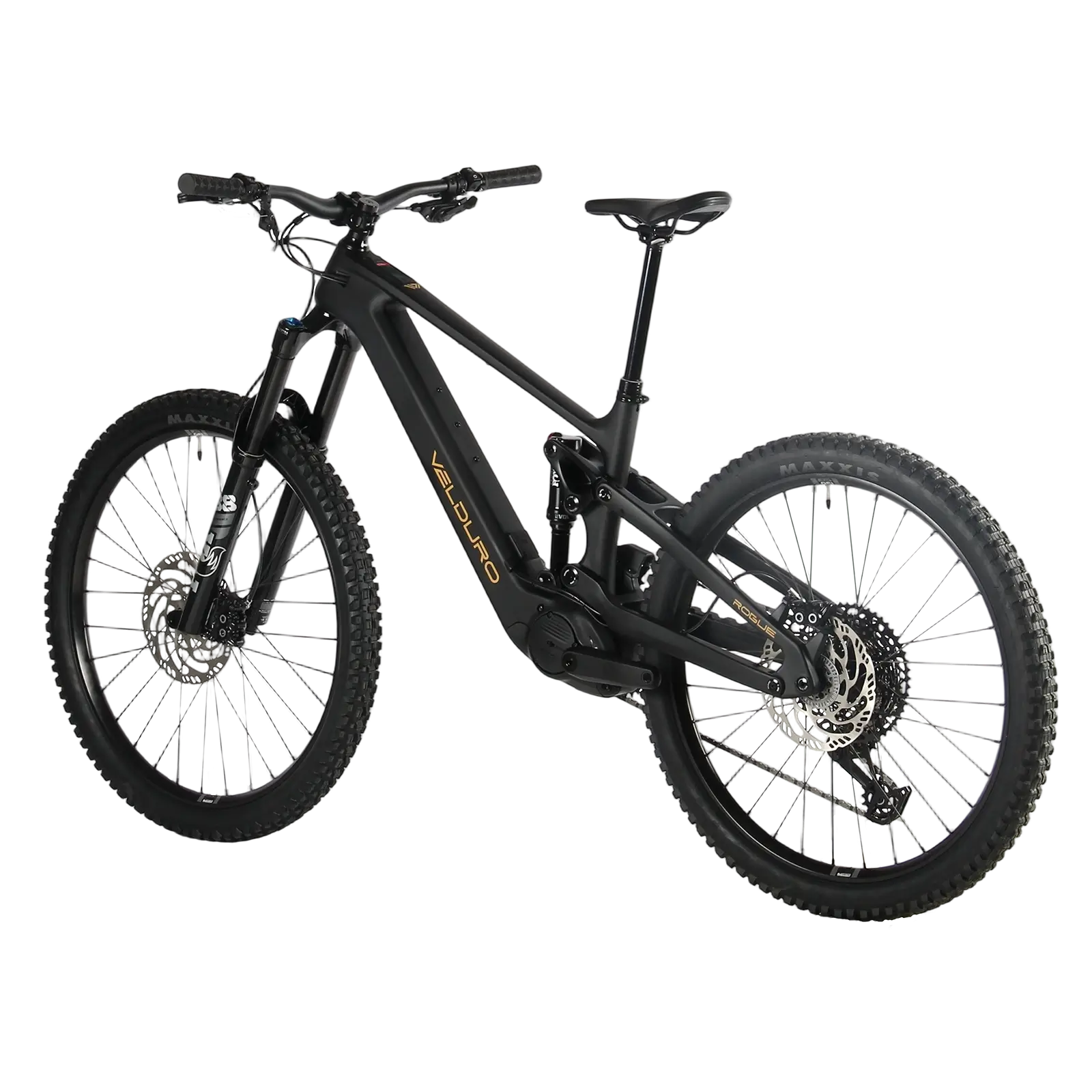

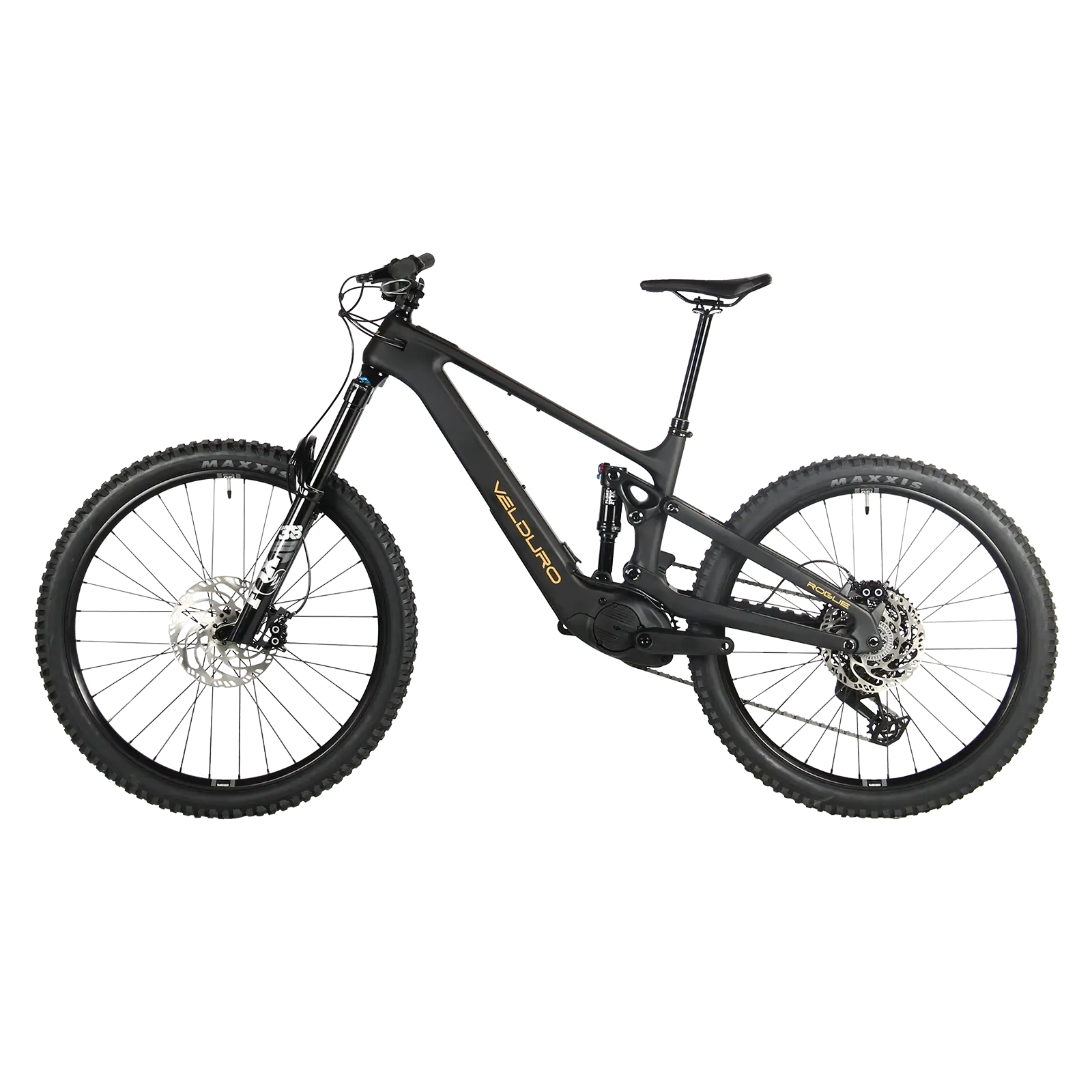

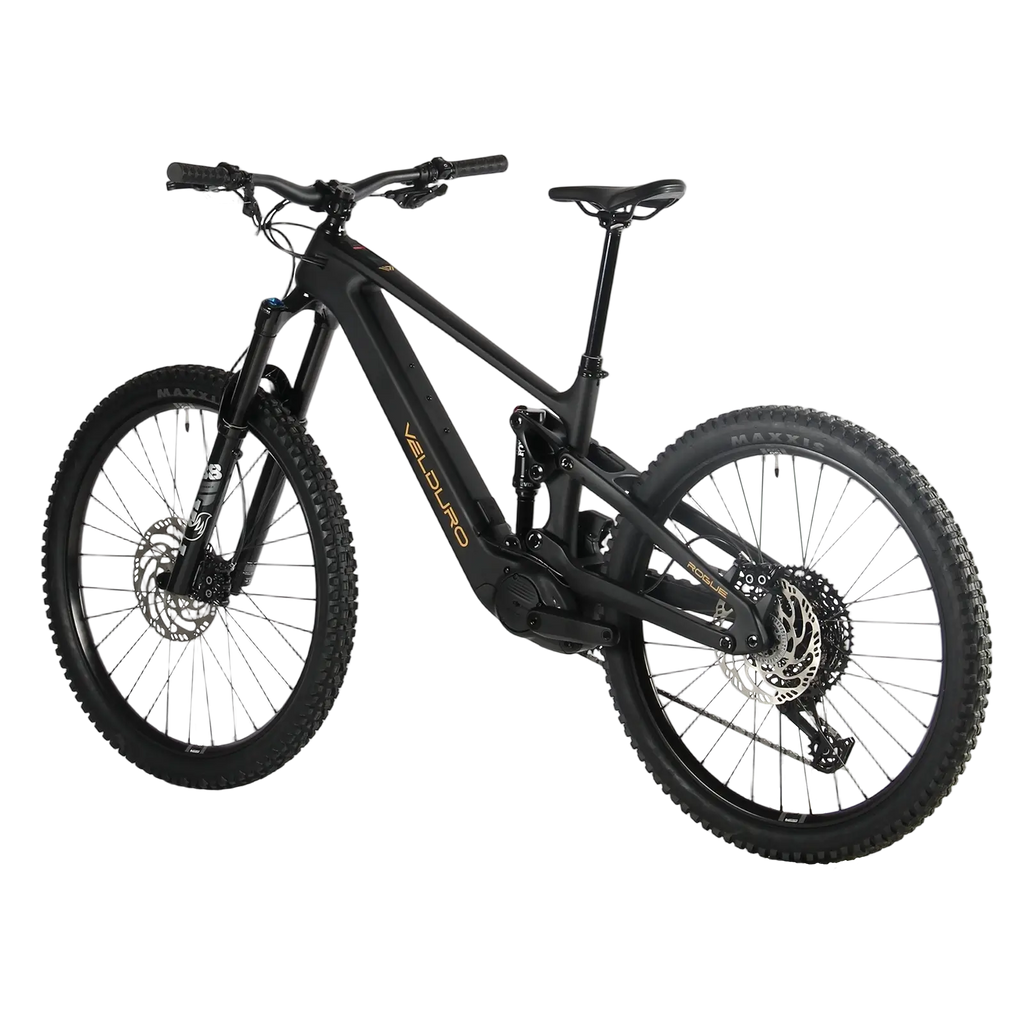

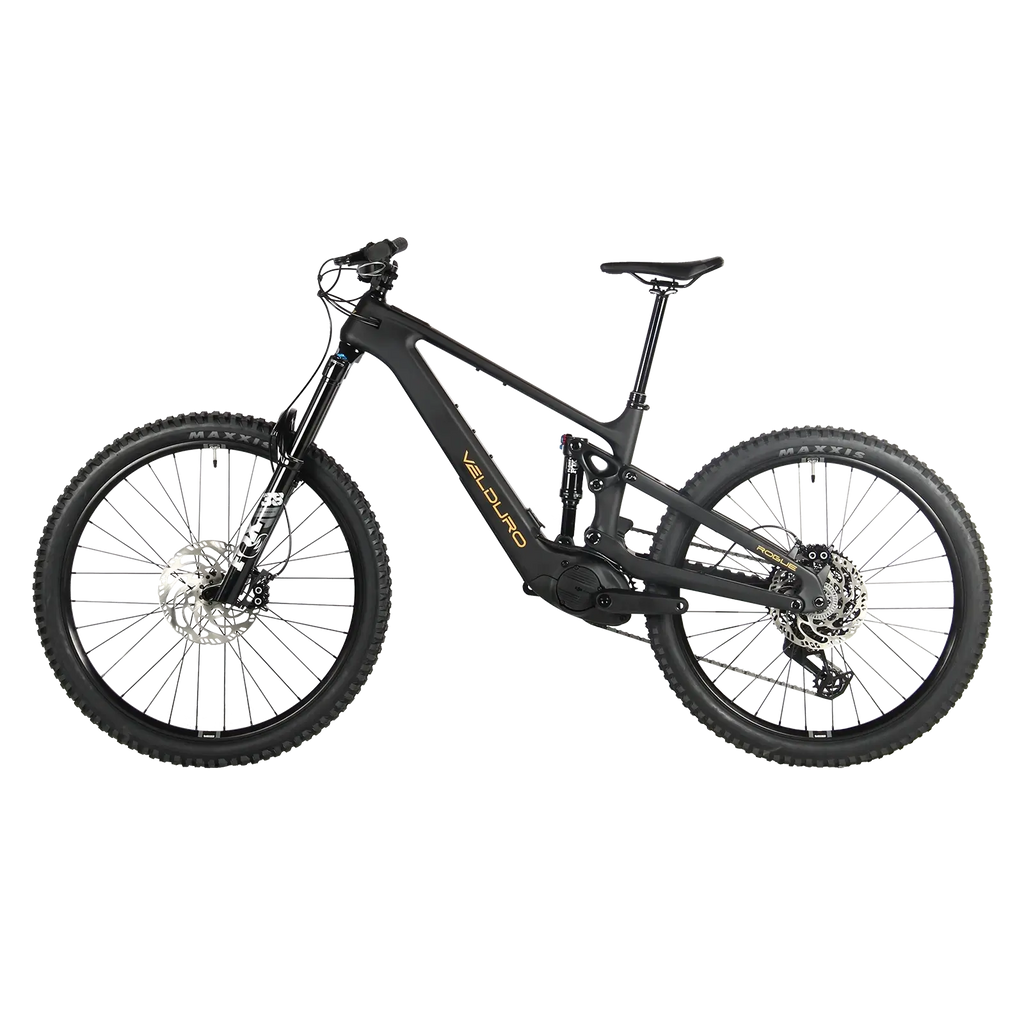

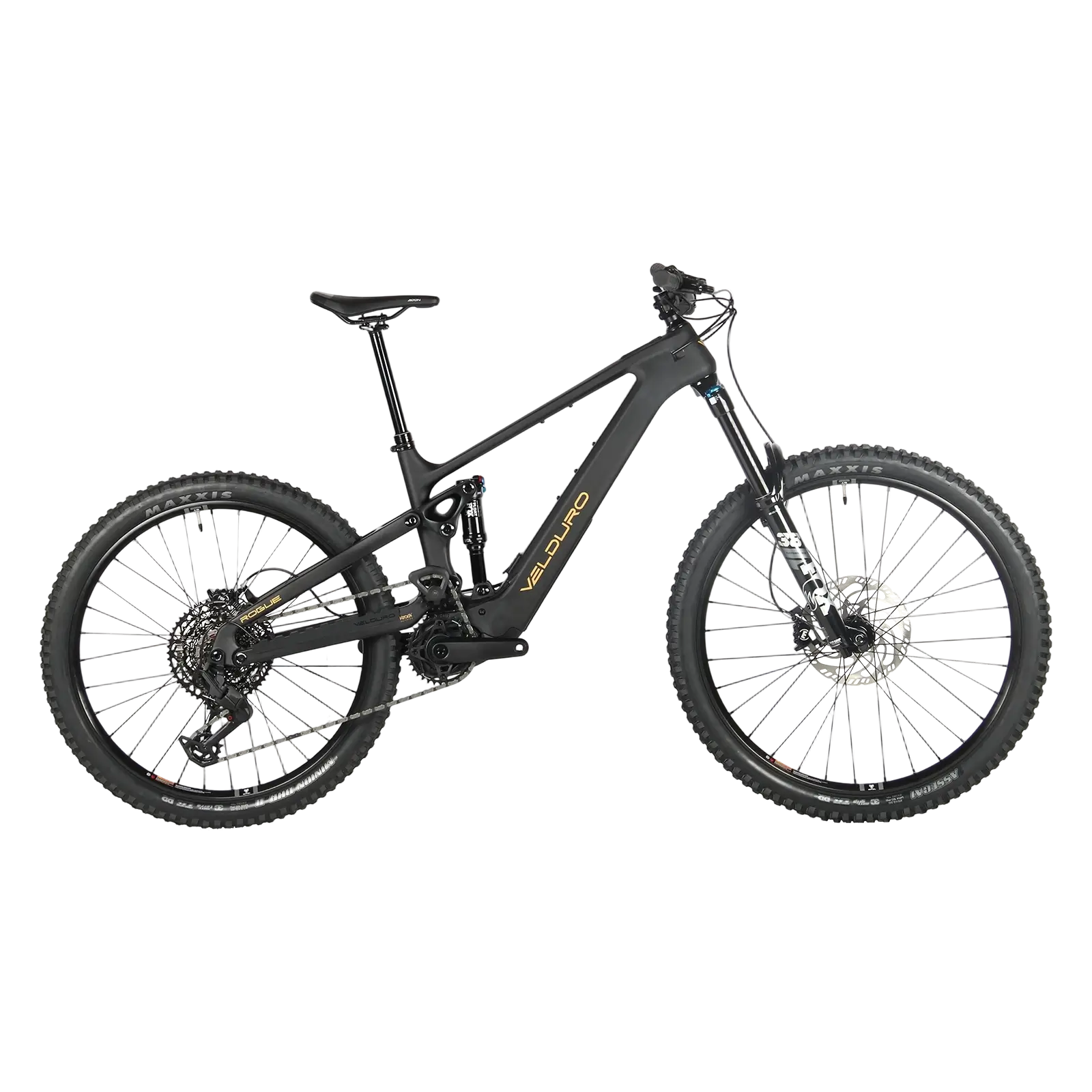

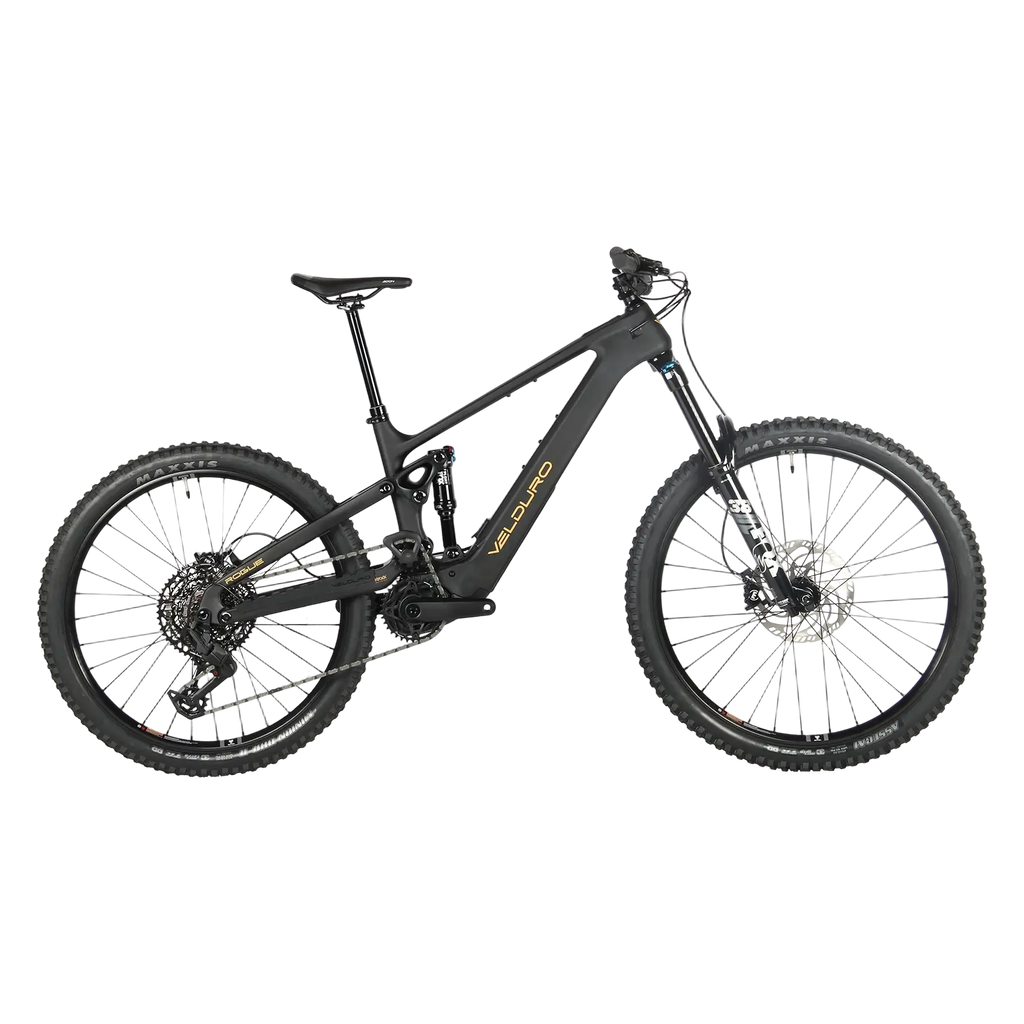

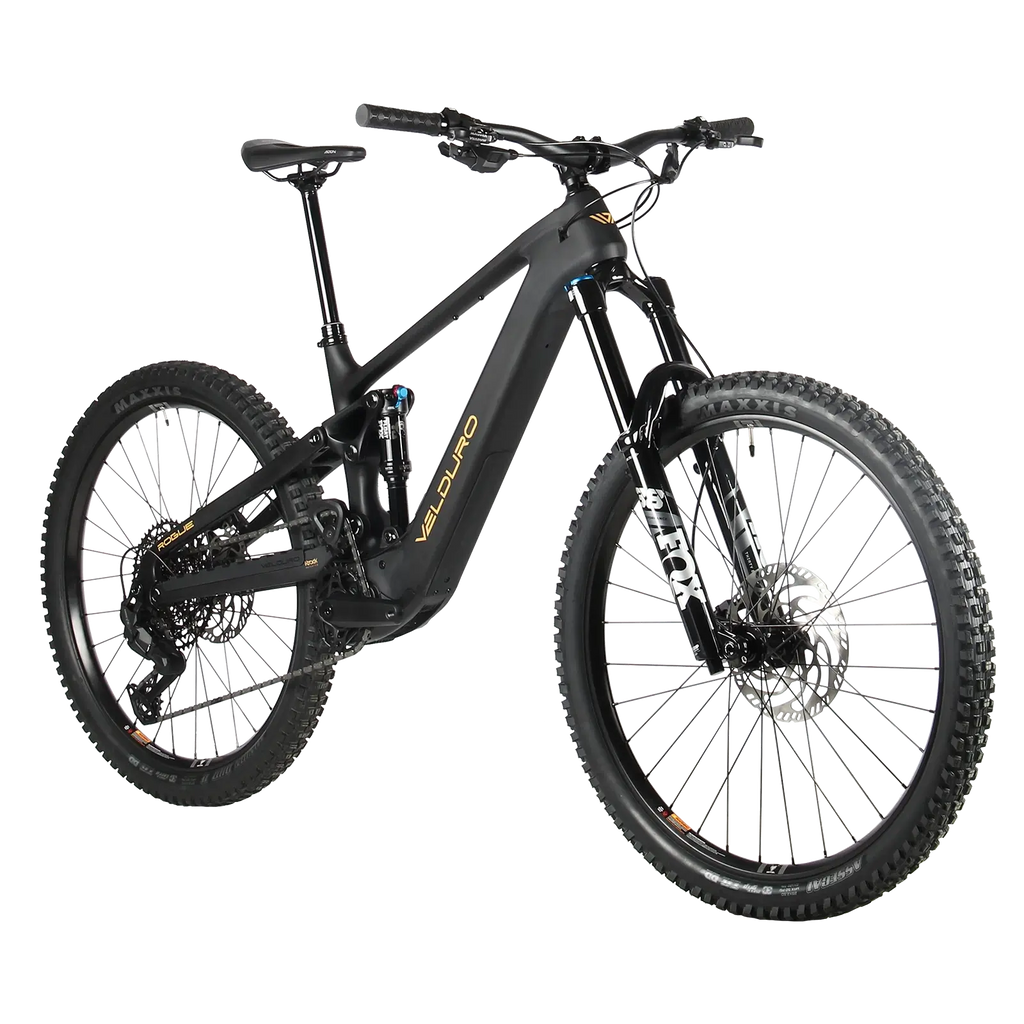

2026 Velduro Rogue X
Build your Dream EMTB with Velduro. Using flip chips the Rogue's modular frame can adapt to your needs and riding style. Swap the travel, tweak geometry or switch wheel sizes and customise your ride to create your Dream Machine. In Standard Mode (170mm fork / 165mm rear with MX wheels), it's a trail-taming beast. Switch to All-Mountain Mode (160mm front/rear with MX wheels) for flowy precision, or unleash enduro Mode (180mm front / 172mm rear with 29inch rear wheel) to dominate descents. The Rogue is powered by the DJI Avinox drive system and 800wh battery. (NZ Arrival Date November 2025)
Carbon Fibre Enduro Frame,
- -165mm rear travel, up to 170mm with 27.5 rear wheel
- mid-pivot
- battery integrated
- rear wheel flip chip
- shock position flip chip
- inner cable routing
- Boost 12x148mm
-16T idler, with oversize bearings. - Headset: FSA No.57 Alloy MTB ZS44/56
- Saddle: Fizik Terra Aidon X5
- Seat post lever: ONEUP Dropper lever V3.1
- Seat Post Clamp:ONEUP KIT 22.2
- Dropper:ONEUP V3 mechanical Dia.31.6
S: 180mm travel, M/L: 210mm travel,
XL: 240mm travel - Handlebar: OneUp, alloy, 800L, 35R.
- Stem: ONEUP Stem 42mm forged
- Grips: Velduro: thick grips - Black
- Brakes: Magura MT5 HC,hydraulic brake, 4-Piston, heavy duty
- Disc: Magura MDR-C heavy duty disc, front 220mm, rear 203mm
- Pedal: Riders Choice
- SHIFT LEVER:Sram eagle 70 shifter
- REAR DERAILLEUR: Sram eagle 70 transmission mechanical
- CRANKSET: Avinox SL crank 155mm
- CASSETTE: Sram XS-1270 10-52T Eagle Transmission
- CHAIN :Sram Eagle 70 Flat top Chain
- CHAINWHEEL: Sram 34T eagle Transmission E-MTB Chainring 104 BCD
- Wheel set: Velduro e-Enduro Alloy, EA-30
- Front Hub: Alloy, 2 sealed cartridge bearings, 15x110thru-axle, 32h, straight-pull, 6-bolt
- Rear Hub: Alloy, 4 sealed cartridge bearings, 148x12thru-axle, 32h, straight-pull, 6-bolt, 21T
- Spokes: Sapim e-light J-bend
- Rim: Alloy,F 29’/R 27.5’, 30mm internal width
- Front tire: Maxxis Assegai M356Ru 29*2.5 3C Grip/DD/TR BK
- Rear tire: Maxxis Minion DHR2 M327 Ru27.5*2.4 3C Terra/DD/TR BK
- Your Rogue is tubeless ready, but comes with tube.
Motor: AVINOX M1 105 Nm 850W
- Battery: 800 WH
- Charger: AVINOX M1 36V 4A
- Display: AVINOX M1 DP100
- Fox 38 P-S 2026, 29 inch, 170mm,Grip, 15X110mm
- Fox float P-S 2026, 205X65mm (custom factory tuned for the Rogue)
